Tungsten carbide gauge blocks are used for high-wear applications because they provide excellent wear resistance, surface durability, and long-term dimensional stability under frequent inspection conditions. Compared with standard steel gauge blocks, carbide gauge blocks are often selected when the same reference blocks are used repeatedly, when abrasive particles may be present, or when inspection reliability must be maintained over a longer service life.
Gauge blocks, also called gage blocks, are precision length standards used for calibration, inspection, fixture setup, and dimensional verification. They are used to check micrometers, calipers, height gauges, comparators, dial indicators, and other measuring tools. In many manufacturing environments, gauge blocks are not optional accessories; they are reference standards that support the accuracy of the entire inspection system.
For general factory inspection, steel gauge blocks are often practical and cost-effective. For corrosion-sensitive environments, ceramic gauge blocks may be preferred. But when wear resistance becomes the main concern, tungsten carbide gauge blocks can be a stronger choice.
MISHUTE supplies gauge blocks for calibration and industrial inspection applications. Buyers can review related product options on the MISHUTE gauge blocks page.
What Are Tungsten Carbide Gauge Blocks?

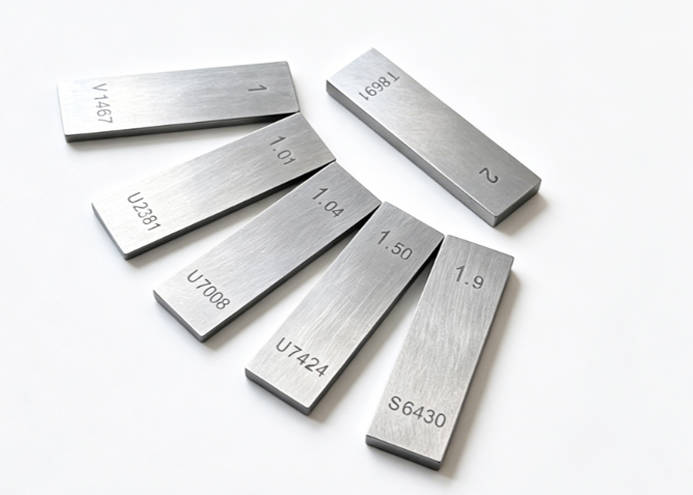

Tungsten carbide gauge blocks are precision length standards made from tungsten carbide material. Like steel and ceramic gauge blocks, they have flat, parallel measuring faces and are manufactured to controlled lengths. They can be used individually or combined with other blocks to build reference dimensions.
The key difference is material performance. Tungsten carbide is known for high hardness and wear resistance. For gauge blocks, this matters because the measuring faces are repeatedly contacted, wrung, cleaned, stacked, separated, and used against other measuring surfaces.
The main purpose of tungsten carbide gauge blocks is to provide durable reference lengths in applications where ordinary gauge blocks may wear too quickly.
They are commonly used in:
- High-frequency calibration
- Production inspection rooms
- Tooling and grinding environments
- Quality control departments
- Precision machining facilities
- Comparator setup
- Micrometer checking
- Long-term working gauge block sets
- Applications where wear life is more important than initial cost
Why Wear Resistance Matters in Gauge Blocks
Gauge blocks must maintain their length accuracy over time. Wear on the measuring faces can change the effective length of the block and reduce confidence in measurement results. Even small changes matter in precision inspection.
Wear can come from several sources:
| Wear Source | How It Affects Gauge Blocks |
| Frequent wringing | Repeated contact may gradually affect measuring faces |
| Dust or grit | Abrasive particles can scratch surfaces |
| Rough handling | Scratches, burrs, or dents reduce reliability |
| Repeated tool checking | Daily contact with micrometers or fixtures causes wear |
| Workshop conditions | Coolant mist, grinding dust, and metal particles increase risk |
| Improper cleaning | Dirt trapped between blocks can damage surfaces |
A gauge block used as a working standard may experience much more wear than a master set kept in a controlled calibration room.
This is why material selection matters. A gauge block material that performs well in a clean laboratory may not always be ideal for a high-contact production environment.
When Are Tungsten Carbide Gauge Blocks the Right Choice?
Tungsten carbide gauge blocks are most suitable when wear resistance, frequent use, and long-term measurement reliability are more important than the lowest initial purchase cost.
1. High-Frequency Inspection
If the same gauge blocks are used many times per day, wear can accumulate faster. This is common in factories that use gauge blocks to check micrometers, height gauges, indicators, and fixtures during production.
Tungsten carbide gauge blocks may be useful when:
- Operators check measuring instruments frequently
- The same block sizes are used repeatedly
- Blocks are used across multiple shifts
- A working set must remain stable over time
- Inspection downtime and replacement cost matter
For high-use environments, carbide gauge blocks can help reduce wear-related accuracy loss.
2. Abrasive or Dusty Environments
Grinding shops, machining areas, and tooling departments may contain fine abrasive particles. Even when operators clean the gauge blocks carefully, airborne grit can settle on surfaces. If the blocks are wrung or moved with particles between the faces, scratching may occur.
Tungsten carbide gauge blocks are often considered when:
- Grinding dust is present
- Parts are inspected near machining operations
- Blocks are used outside a clean metrology room
- Operators need a durable working set
- The risk of surface scratching is higher than normal
Carbide does not remove the need for cleaning. However, it can offer better resistance to wear and surface damage in demanding environments.
3. Long-Term Working Standards
Some companies use one master gauge block set for reference and another working set for daily use. Tungsten carbide gauge blocks are often considered for the working set because that set experiences more handling and contact.
| Set Type | Main Purpose | Material Consideration |
| Master set | Reference and higher-level calibration | Higher grade, controlled storage |
| Working set | Daily inspection and tool checking | Wear resistance is important |
| Training set | Operator practice | Cost and durability both matter |
| Production set | Shop-floor measurement support | Wear, handling, and environment matter |
Tungsten carbide gauge blocks are often justified when the same working blocks are used frequently and must maintain reliable reference dimensions over time.
4. Frequent Micrometer and Comparator Checking
Gauge blocks are often used to verify micrometers at selected points across the measuring range. They may also be used to set comparators or indicators. These tasks create repeated contact between the measuring tool and the gauge block surface.
For low-frequency use, steel blocks may be enough. For frequent checking, carbide gauge blocks may reduce the risk of wear on commonly used sizes.
Typical applications include:
- Micrometer calibration checks
- Dial indicator setup
- Comparator reference setting
- Depth micrometer verification
- Height gauge checking
- Fixture reference setup
Tungsten Carbide vs Steel vs Ceramic Gauge Blocks
Material comparison is one of the most important buying questions. Each material has advantages and limitations.
| Material | Main Advantage | Main Limitation | Suitable Application |
| Steel gauge blocks | Cost-effective and widely used | Requires rust prevention and can wear with frequent use | General inspection, workshop QC, routine calibration |
| Ceramic gauge blocks | Corrosion resistant and non-magnetic | Higher cost than steel, still requires careful handling | Clean inspection rooms, corrosion-sensitive environments |
| Tungsten carbide gauge blocks | Excellent wear resistance and surface durability | Higher initial cost and heavier handling | High-frequency use, abrasive environments, demanding production inspection |
Choose tungsten carbide gauge blocks when wear resistance and long service life are more important than the lowest initial cost.
Steel gauge blocks are still a strong option for many general inspection tasks. Ceramic gauge blocks are useful when corrosion resistance or non-magnetic performance is important. Tungsten carbide gauge blocks become more attractive when blocks are used often, handled frequently, or exposed to higher wear risk.
MISHUTE provides gauge block options for different inspection environments. You can explore related products through the precision gauge blocks category.
Advantages of Tungsten Carbide Gauge Blocks
High Wear Resistance
The most important advantage is wear resistance. Gauge blocks depend on stable measuring faces. If the surface wears, the reference length may change. Tungsten carbide helps reduce this risk in frequent-use applications.
This is especially useful when:
- Blocks are used daily
- The same sizes are repeatedly selected
- Multiple operators share one working set
- The set is used for production support
- Blocks are exposed to more contact than a laboratory reference set
Good Surface Durability
Gauge block surfaces must remain flat, smooth, and suitable for wringing. Surface scratches can affect wringing performance and measurement confidence.
Tungsten carbide gauge blocks can provide better resistance to surface damage than ordinary steel blocks in many high-contact situations. This does not mean they are impossible to damage. Careful handling is still required.
Suitable for Repeated Working Use
In real manufacturing environments, some gauge block sizes are used more often than others. These commonly used blocks may wear faster. Tungsten carbide gauge blocks are suitable for these high-use sizes or for full sets used in demanding inspection areas.
Some buyers may choose:
- A full tungsten carbide gauge block set
- Individual carbide blocks for frequently used sizes
- Carbide wear blocks
- Carbide blocks for production inspection
- Steel or ceramic master sets with carbide working blocks
This flexible approach helps balance cost and durability.
Long-Term Cost Control in Demanding Applications
Tungsten carbide gauge blocks usually cost more than standard steel blocks. However, in high-wear applications, longer service life may reduce replacement frequency, recalibration problems, and inspection uncertainty.
The purchasing decision should consider total usage cost, not only initial price.
| Cost Factor | Why It Matters |
| Initial purchase cost | Carbide blocks are usually more expensive |
| Replacement frequency | Higher wear resistance may reduce replacement needs |
| Calibration stability | Less wear may support more stable results |
| Inspection downtime | Fewer wear-related issues may reduce interruptions |
| Quality risk | Stable standards help reduce measurement disputes |
For occasional use, steel may remain the more economical choice. For demanding use, tungsten carbide may be more cost-effective over time.
Limitations of Tungsten Carbide Gauge Blocks
Tungsten carbide gauge blocks are useful, but they are not always necessary. Buyers should understand the limitations before purchasing.
Higher Initial Cost
Carbide gauge blocks usually involve a higher purchase cost than steel blocks. If your inspection frequency is low and the environment is clean, steel gauge blocks may be sufficient.
Heavier Handling
Tungsten carbide is denser than steel or ceramic. Larger blocks may feel heavier, and operators should handle them carefully to avoid dropping or impact damage.
Still Requires Careful Cleaning
Wear resistance does not replace good measurement practice. Carbide blocks should still be cleaned before and after use. Dirt, oil, and abrasive particles should be removed to protect both the gauge block and the measuring instrument.
Not Always Needed for Master Sets
If a master set is stored in a controlled environment and used only occasionally, tungsten carbide may not always be necessary. The selection depends on use frequency, handling risk, and quality requirements.
How to Choose Tungsten Carbide Gauge Blocks
Choosing tungsten carbide gauge blocks requires the same basic selection logic as other precision gauge blocks, plus additional focus on wear conditions.
1. Define the Application
Start by identifying how the blocks will be used.
| Application | Selection Focus |
| Calibration laboratory | Grade, certificate, traceability, environmental control |
| Production inspection | Wear resistance, handling, common size range |
| Grinding shop | Scratch resistance, cleaning practice, working set design |
| Tool room | Durability, frequently used sizes, storage |
| Micrometer checking | Size range, grade, calibration certificate |
| Fixture setup | Block combination flexibility and surface durability |
The more frequently the blocks are used, the more important wear resistance becomes.
2. Choose Metric or Inch
Select the measurement system that matches your drawings and measuring tools.
| System | Suitable For |
| Metric tungsten carbide gauge blocks | Millimeter drawings, metric micrometers, international production |
| Inch tungsten carbide gauge blocks | Inch drawings, imperial measuring tools, U.S.-market parts |
| Both metric and inch sets | Export factories or mixed-standard inspection rooms |
Using the correct system reduces conversion errors and simplifies inspection work.
3. Select the Grade
Gauge block grade should match the accuracy requirement. Higher grades are usually used in calibration laboratories or controlled inspection rooms. Working sets may use grades suitable for daily inspection tasks.
The exact grade system depends on the applicable standard and supplier specification. Buyers should confirm:
- Required grade
- Applicable standard
- Tolerance requirements
- Calibration certificate level
- Whether the set is for master or working use
- Customer-specific requirements
Do not select a grade only by price or label. Match the grade to your inspection task.
4. Decide Between Full Set and Selected Sizes
A full tungsten carbide gauge block set offers broad flexibility, but it may not always be necessary. Some buyers only need carbide blocks for frequently used sizes.
| Buying Option | Suitable For |
| Full carbide gauge block set | High-frequency inspection across many sizes |
| Individual carbide blocks | Frequently used dimensions |
| Carbide wear blocks | Protecting working combinations |
| Mixed material strategy | Balancing cost, durability, and accuracy |
| Steel master + carbide working blocks | Practical production inspection systems |
This approach is useful when you want wear resistance where it matters most without overspending on rarely used sizes.
5. Confirm Certificate Requirements
Gauge blocks are reference standards, so certificate requirements should be clear before purchase.
A certificate may include:
- Block identification
- Nominal length
- Measured deviation
- Calibration date
- Measurement uncertainty
- Calibration method
- Traceability information
- Environmental conditions
- Laboratory or inspection information
For quality systems, customer audits, and regulated manufacturing, traceability may be important. Always confirm whether you need a factory certificate, traceable calibration certificate, or third-party calibration certificate.
Maintenance Tips for Tungsten Carbide Gauge Blocks
Tungsten carbide gauge blocks are wear resistant, but they still require proper care. Precision surfaces can be affected by contamination, impact, poor storage, or incorrect handling.
Recommended practices include:
- Clean blocks before and after use
- Avoid touching measuring faces directly
- Remove grit or dust before wringing
- Store blocks in a protective case
- Avoid dropping or impacting blocks
- Do not slide blocks across rough surfaces
- Use clean cloths and proper cleaning methods
- Keep records of calibration and use
- Separate master sets from working sets
- Train operators in gauge block handling
Wear-resistant gauge blocks still require careful handling because measurement accuracy depends on the condition of the measuring faces.
Common Buying Mistakes
Buying Carbide Blocks Only Because They Sound Premium
Tungsten carbide is not automatically required for every inspection room. If your blocks are used occasionally in a clean environment, steel or ceramic may be enough.
Ignoring the Actual Wear Source
Before buying, identify why blocks are wearing. Is it frequent use, abrasive dust, poor cleaning, operator handling, or lack of storage control? Material selection should solve the real problem.
Forgetting Calibration Requirements
Even durable gauge blocks need calibration. Wear resistance reduces one risk, but it does not remove the need for measurement verification.
Choosing a Full Set When Only Certain Sizes Wear
Some blocks are used much more often than others. Buying individual carbide blocks or wear blocks for those sizes may be more economical than replacing the entire set.
Using Carbide Blocks Without Training Operators
Carbide blocks are durable, but poor handling can still cause damage. Operators should understand cleaning, wringing, storage, and inspection procedures.
How to Choose a Tungsten Carbide Gauge Block Supplier
A reliable supplier should help buyers match material, grade, size range, and certificate requirements to the actual inspection environment.
Before requesting a quotation, prepare:
- Metric or inch requirement
- Required size range
- Grade or accuracy requirement
- Full set or individual block requirement
- Application environment
- Inspection frequency
- Calibration certificate requirement
- Quantity
- Packaging and storage needs
- Whether steel or ceramic alternatives should also be compared
| Supplier Capability | Why It Matters |
| Material options | Helps compare steel, ceramic, and tungsten carbide |
| Grade selection support | Reduces risk of under-specifying or overbuying |
| Certificate support | Supports traceability and quality audits |
| Custom size availability | Helps with special inspection requirements |
| Clear technical communication | Prevents ordering mistakes |
| Stable quality control | Important for long-term measurement reliability |
MISHUTE supports gauge block selection for calibration, inspection, and industrial quality control. Buyers can view related product information on the MISHUTE gauge blocks page or visit the MISHUTE homepage for broader precision gauge solutions.
FAQ
What are tungsten carbide gauge blocks used for?
Tungsten carbide gauge blocks are used as precision reference standards for calibration, inspection, and measurement setup, especially in applications where wear resistance is important.
Are tungsten carbide gauge blocks better than steel gauge blocks?
Tungsten carbide gauge blocks usually offer better wear resistance than steel gauge blocks, making them suitable for frequent-use and high-wear applications. Steel blocks may still be more cost-effective for general inspection.
When should I choose carbide gauge blocks?
Choose carbide gauge blocks when your gauge blocks are used frequently, exposed to abrasive conditions, or required to maintain stable working reference dimensions over long-term use.
Are tungsten carbide gauge blocks suitable for calibration?
Yes. Tungsten carbide gauge blocks can be used for calibration applications when the grade, certificate, and traceability meet the required standard. Buyers should confirm calibration requirements before ordering.
Do tungsten carbide gauge blocks still need calibration?
Yes. Wear-resistant gauge blocks still need calibration because measurement standards must be periodically verified according to quality system requirements and actual usage conditions.
What is the difference between carbide gauge blocks and ceramic gauge blocks?
Carbide gauge blocks are mainly selected for high wear resistance and frequent use. Ceramic gauge blocks are often selected for corrosion resistance, non-magnetic properties, and clean inspection environments.
Should I buy a full tungsten carbide gauge block set?
A full carbide gauge block set is useful for high-frequency inspection across many dimensions. If only certain sizes are used often, individual carbide blocks or wear blocks may be a more economical choice.
How should tungsten carbide gage blocks be maintained?
They should be cleaned before and after use, protected from dust and grit, stored in a proper case, handled carefully, and calibrated according to your inspection system.
Conclusion
Tungsten carbide gauge blocks are used for high-wear applications because they offer strong wear resistance, surface durability, and long-term reliability in frequent inspection environments. They are especially useful when gauge blocks are used repeatedly, exposed to abrasive conditions, or relied on as working standards in production inspection.
Steel gauge blocks remain practical for many general applications, and ceramic gauge blocks are useful where corrosion resistance or non-magnetic properties are important. Tungsten carbide gauge blocks are the better choice when the main concern is wear life and stable performance under demanding use.
If your inspection team needs carbide gauge blocks, wear-resistant gauge blocks, or a gauge block set for frequent calibration and quality control, MISHUTE can help evaluate the right material, size range, grade, and certificate requirement. Visit the MISHUTE gauge blocks category to learn more.
