High-Precision Thread Gauges:
Ensuring Zero-Defect Threaded Assemblies
Master-grade thread plug and ring gauges crafted from premium Tungsten Carbide and Ceramics. Calibrated at 20℃ for aerospace, medical, and defense industries.
Introduction & Details
Pain Points & Background
In high-volume manufacturing, common steel thread gauges often suffer from rapid wear, leading to costly measurement drift and assembly failures. At Meter Precision, we address these challenges by providing thread gauges that combine extreme hardness with exceptional dimensional stability. Our gauges help quality engineers in the automotive and aerospace sectors reduce inspection frequency while maintaining the strictest tolerance standards.
Core Products & Services
Our thread gauge line covers a comprehensive range of international standards, including Metric (M), Unified (UNC/UNF), Pipe Threads (NPT, G, R), and STI (Screw Thread Insert). Each gauge is precision-lapped to achieve a superior surface finish, reducing friction during the Go/No-Go test. Whether you need standard 6H/6g tolerances or custom pitch diameters, our engineers ensure that every unit reflects our commitment to "Precision as the Foundation of Trust."
Key Features
- Ultra-long service life (up to 10x longer than tool steel).
- Certified accuracy with traceable inspection reports (Feinmess Jena & TESA).
- Superior material stability with high-density Zirconia or Tungsten Carbide.
- Available in specialized configurations: Left-hand threads, multi-start threads, and ACME.

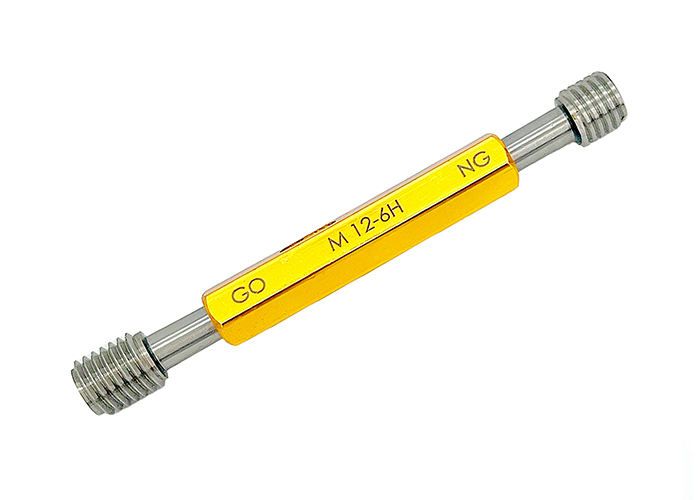

Metric Thread Gauges
Metric Thread Gauges

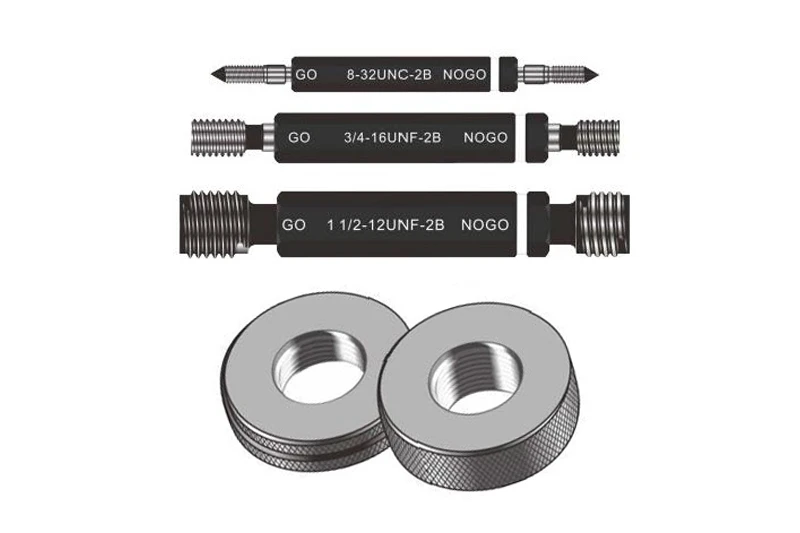

Unified Thread Gauges
American Standard Thread Gauges

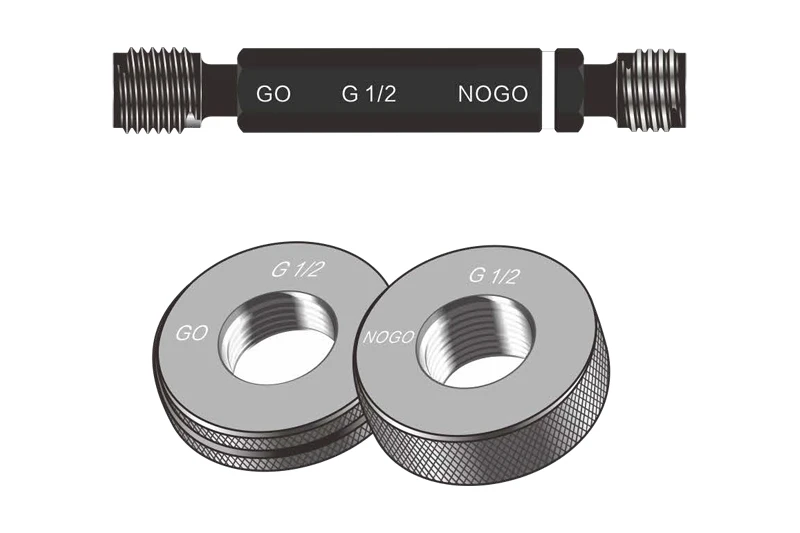

BSP Thread Gauges
Unsealed Pipe Thread Gauge

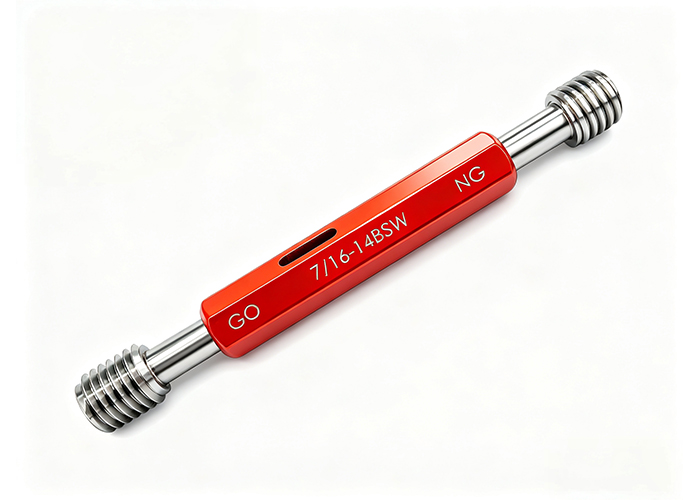

BSW Thread Gauges
British Standard Whitworth Thread Gauge

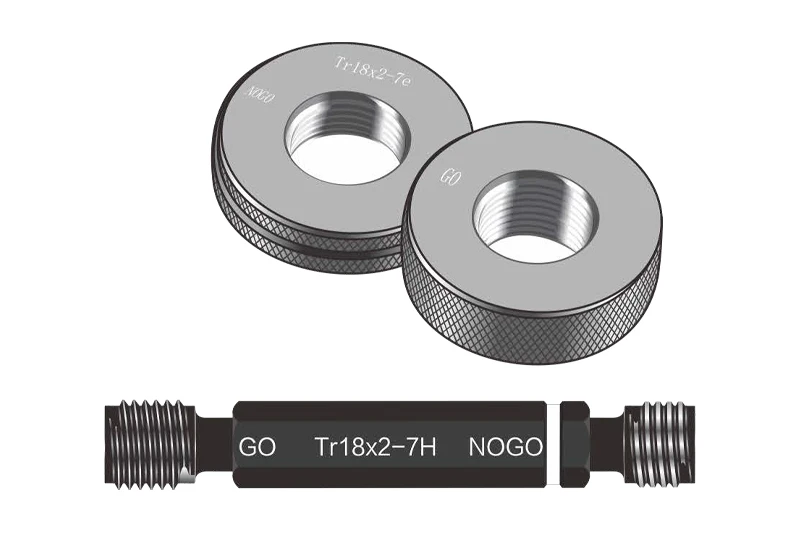

Trapezoidal Thread Gauges
Metric Trapezoidal Thread Gage

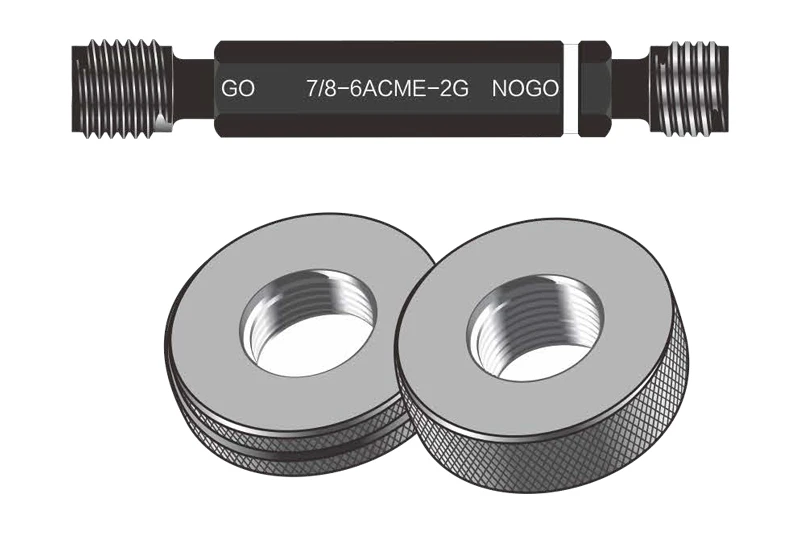

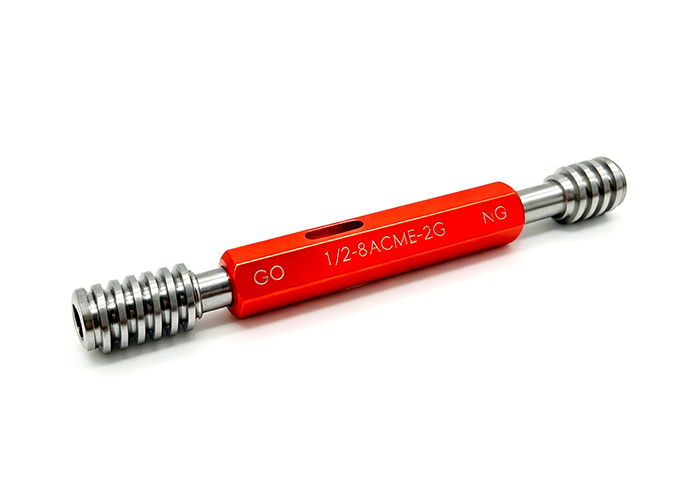

ACME Thread Gauges
ACME Trapezoidal Thread Gauge

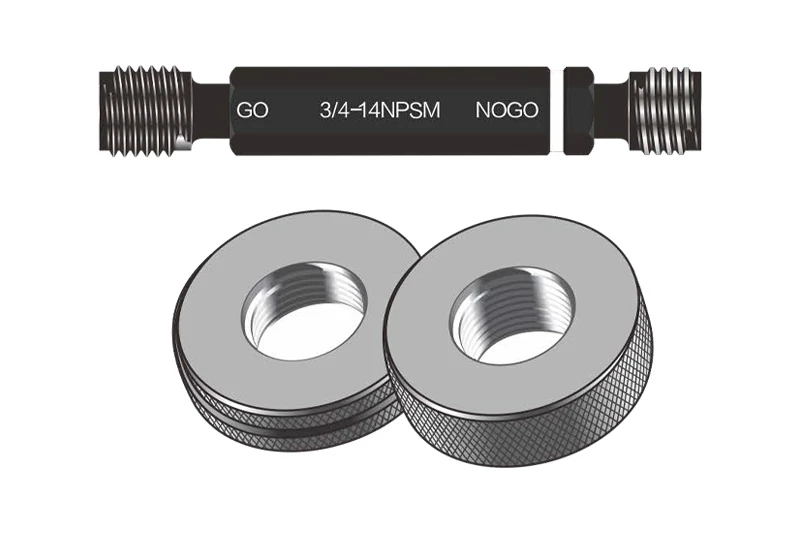

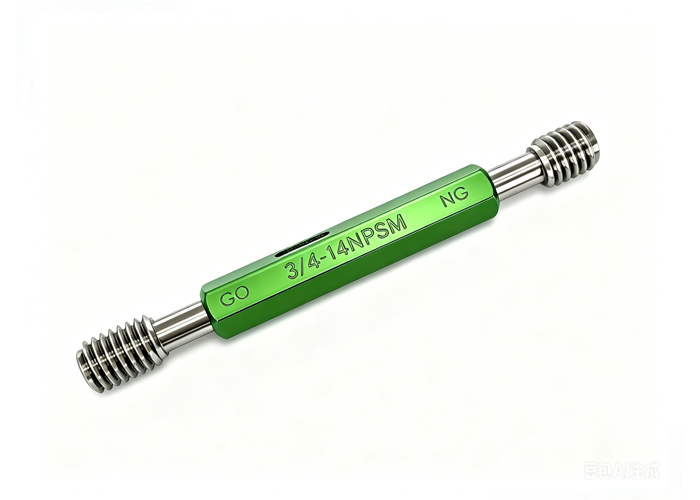

NPSM Thread Gauges
ANSI Cylindrical Pipe Thread Gauge
Material Capabilities
Material Type | Hardness (HV/HRC) | Key Advantage | Recommended Application |
Tungsten Carbide | $1300\text{-}1500$ HV | Extreme wear resistance | High-volume automotive production |
Ceramic (ZrO2) | $1100\text{-}1200$ HV | Corrosion-free, no oiling needed | Medical devices, cleanroom environments |
Bearing Steel (GCr15) | $58\text{-}65$ HRC | Cost-effective, high versatility | General mechanical machining |
Technical Specifications
| Standards | ISO 1502, ASME B1.2, DIN 13, JIS B0251 |
| Tolerance Classes | 4H, 5H, 6H, 7H / 4g, 5g, 6g (Customized available) |
| Size Range | From M1.0 up to M300; NPT 1/16″ to 12″ |
| Calibration Temp | Constant $20^{\circ}\text{C}$ environment |
Core Advantages & Inspection Capabilities
Equipment
Our facility is equipped with the German Feinmess Jena high-precision gauge block comparator and Swiss TESA length measuring machines.
Certification
Each thread gauge is supplied with an original inspection report (supports third-party calibration like CNAS/A2LA upon request).
Why Choose Us
Precision Guaranteed by Advanced Equipment
Extended Lifespan through Material Innovation
Global OEM & Export Experience
Industry Applications
Automotive
Precision gauges help automotive manufacturers verify critical dimensions, bores, shafts, and threads, supporting high-volume production, assembly accuracy, and quality consistency.
link
Medical
Precision gauges support the inspection of critical dimensions in medical components and instruments, helping manufacturers maintain accuracy, consistency, and reliable quality control.
link
New Energy
Precision gauges support dimensional inspection of components used in batteries, electric vehicles, and energy systems, helping maintain accuracy, consistency, and production quality.
link
Electronics
Precision gauges enable reliable inspection of small holes, shafts, and critical dimensions in semiconductor components, supporting tight tolerances and consistent manufacturing.
link
Aerospace
Precision gauges help verify critical dimensions, holes, shafts, and threads in aerospace components, supporting tight tolerances, reliable assembly, and stringent quality control.
link
Machine Tooling
Precision gauges help machining manufacturers verify bore, shaft, thread, and critical dimensions, supporting accurate production, process control, and consistent quality.
linkFAQ
Calibration frequency depends on the material and usage volume. Our Carbide gauges typically last 5-10 times longer between calibrations compared to steel.
Yes, every gauge includes a factory inspection report. Traceable third-party certification is also available.
We specialize in bespoke orders for special diameters, pitches, and thread profiles like ACME or Buttress.
While Ceramic is brittle compared to steel, our Zirconia (ZrO2) is highly toughened to withstand industrial use while providing unmatched corrosion resistance
