To use pin gauges for Go/No-Go hole measurement, select a GO pin based on the minimum acceptable hole size and a NO-GO pin based on the maximum acceptable hole size. The GO pin should enter the hole, while the NO-GO pin should not enter under the defined inspection condition. This method allows inspectors to quickly judge whether a hole is within tolerance without reading a numerical measurement from a bore gauge, air gauge, or CMM.
Pin gauges, also called pin gages, are precision cylindrical tools used for checking hole diameter, slot width, gaps, bore straightness, and production machining consistency. In Go/No-Go inspection, they are especially useful because the result is simple: pass or fail.
For CNC machining, mold components, precision hardware, automotive parts, medical device components, and electronic parts, hole size often affects assembly fit, fastener alignment, clearance, sealing, fluid passage, and product function. A pin gage set helps quality teams check these features quickly and repeatedly.
MISHUTE supplies pin gauges for precision hole inspection and dimensional checking. You can review related product options on the MISHUTE pin gauges page.
What Is Go/No-Go Hole Measurement?
Go/No-Go hole measurement is a fixed-limit inspection method. Instead of measuring the exact hole diameter, the inspector checks whether the hole passes two size limits.
The GO pin checks the lower limit of the hole. It confirms that the hole is not too small.
The NO-GO pin checks the upper limit of the hole. It confirms that the hole is not too large.
| Gauge | What It Checks | Expected Result |
| GO pin gauge | Minimum acceptable hole size | Should enter |
| NO-GO pin gauge | Maximum acceptable hole size | Should not enter |
| Pass condition | Hole is within tolerance | GO enters, NO-GO does not enter |
| Fail condition 1 | Hole may be too small | GO does not enter |
| Fail condition 2 | Hole may be too large | NO-GO enters |
Go/No-Go inspection is used when the goal is to confirm whether a hole is acceptable, not to find its exact measured diameter.
This makes the method suitable for production inspection where speed, consistency, and operator simplicity are important.
Why Use Pin Gauges for Go/No-Go Inspection?
Pin gauges are widely used because they are simple, repeatable, and practical for shop-floor inspection. A trained operator can check many holes quickly without complex measurement setup.
| Advantage | Why It Matters |
| Fast pass/fail result | Suitable for production inspection |
| Simple operation | Reduces reading and interpretation errors |
| Repeatable checking | Supports consistent quality control |
| Useful for small holes | Easier than using calipers on small precision holes |
| Flexible size selection | Pin gage sets cover many diameters |
| Works for holes, slots, and gaps | Useful across machining and assembly inspection |
| Can be customized | Suitable for dedicated production holes |
For high-volume production, dedicated GO and NO-GO pins may be faster than searching through a full set. For inspection rooms that check many different parts, a complete pin gage set may provide more flexibility.
Step-by-Step: How to Use Pin Gauges for Go/No-Go Hole Measurement
Step 1: Read the Hole Tolerance from the Drawing
Before selecting a pin gauge, start with the drawing. Do not choose the pins only from the nominal hole diameter.
You need to confirm:
- Nominal hole size
- Lower tolerance limit
- Upper tolerance limit
- Metric or inch standard
- Through hole or blind hole
- Required inspection depth
- Surface finish or burr condition
- Part material
- Customer inspection requirement
- Whether Go/No-Go inspection is acceptable
Example:
| Drawing Requirement | Example Value |
| Nominal hole diameter | 8.000 mm |
| Lower limit | 7.990 mm |
| Upper limit | 8.010 mm |
| Total tolerance | 0.020 mm |
| Inspection method | Go/No-Go pin gauge |
In this case, the GO pin is selected around the lower hole limit, and the NO-GO pin is selected around the upper hole limit. The exact pin gauge tolerance should be selected according to the applicable inspection standard and quality requirement.
The correct GO and NO-GO pin sizes should be selected from the hole tolerance limits, not only from the nominal diameter.
Step 2: Select the GO Pin Gauge
The GO pin checks whether the hole is large enough. If the hole is below the minimum acceptable size, the GO pin should not enter.
For hole inspection:
- The GO pin is related to the lower hole limit.
- The GO pin should enter the hole.
- The GO pin should be inserted using light, controlled pressure.
- The GO pin should not be forced.
If the GO pin does not enter, possible causes include:
- Hole is undersize
- Burr at the hole entrance
- Chips or contamination inside the hole
- Coating buildup
- Hole taper or distortion
- Wrong pin size
- Damaged or worn pin
Before rejecting the part, the inspector should follow the company’s inspection procedure. In many cases, cleaning and rechecking may be required.
Step 3: Select the NO-GO Pin Gauge
The NO-GO pin checks whether the hole is too large. If the hole exceeds the maximum acceptable size, the NO-GO pin may enter.
For hole inspection:
- The NO-GO pin is related to the upper hole limit.
- The NO-GO pin should not enter under the defined inspection condition.
- The procedure should define whether partial entry is allowed.
- The operator should not force the NO-GO pin.
If the NO-GO pin enters, possible causes include:
- Hole is oversize
- Tool wear has enlarged the hole
- Reaming or boring process is unstable
- Thermal expansion affected machining
- Wrong NO-GO pin size was selected
- Operator used excessive force
- Inspection condition was not clearly defined
For a part to pass Go/No-Go hole inspection, the GO pin should enter and the NO-GO pin should not enter.
Step 4: Clean the Part and Pin Gauges
Cleaning is essential. Dirt, oil, chips, coolant, burrs, or dust can change the result.
Before inspection:
- Clean the hole
- Remove loose chips
- Wipe the pin gauge
- Check the pin for damage
- Confirm the pin marking
- Avoid touching precision surfaces unnecessarily
- Use proper handling practice
A small chip inside a hole can stop the GO pin from entering. A burr at the entrance can also create a false fail. On the other hand, forcing a pin through contamination may damage the hole or gauge.
A pin gauge should be used on a clean part with light hand pressure and proper alignment.
Step 5: Insert the Pin Straight
Alignment affects inspection results. If the pin is inserted at an angle, it may bind even when the hole is acceptable. This is especially important for small holes, tight tolerances, and deep bores.
Good technique includes:
- Align the pin with the hole axis.
- Use steady hand pressure.
- Do not rock the pin aggressively.
- Do not use hammering or forced insertion.
- For deep holes, check the required insertion depth.
- For blind holes, confirm whether depth affects the inspection.
If the pin only enters at an angle or binds halfway, the issue may be hole taper, burrs, dirt, or misalignment.
Step 6: Interpret the Result
The inspection result should be interpreted according to a written procedure. Different operators should not create their own definitions of “fit.”
| Result | Interpretation |
| GO enters smoothly, NO-GO does not enter | Hole passes Go/No-Go inspection |
| GO does not enter | Hole may be too small |
| NO-GO enters | Hole may be too large |
| GO enters only with force | Result is questionable |
| NO-GO enters partially | Follow the defined acceptance rule |
| Pin binds halfway | Possible taper, burr, dirt, or form error |
| Pin rocks excessively | Hole may be oversize or out of round |
For critical parts, the inspection procedure should define:
- Whether the pin must enter fully
- Whether partial NO-GO entry is allowed
- How much force is acceptable
- Whether the part should be cleaned and rechecked
- Whether additional measurement is required
Example: Go/No-Go Pin Gauge Selection
The following example is simplified for explanation. Actual gauge selection should follow your company’s standard, customer requirements, and gauge supplier’s tolerance rules.
Suppose a part drawing shows:
| Parameter | Example |
| Nominal hole size | 10.000 mm |
| Lower hole limit | 9.990 mm |
| Upper hole limit | 10.010 mm |
| Total hole tolerance | 0.020 mm |
| Inspection type | Go/No-Go hole measurement |
The selection logic:
- The GO pin is based on the lower limit of 9.990 mm.
- The NO-GO pin is based on the upper limit of 10.010 mm.
- Pin gauge tolerance must be considered.
- Plus/minus direction should match the inspection method.
- The acceptance rule should be defined before production.
| Pin Type | Related Limit | Function | Expected Result |
| GO pin | Lower hole limit | Confirms hole is not too small | Should enter |
| NO-GO pin | Upper hole limit | Confirms hole is not too large | Should not enter |
This example shows why a buyer should not simply order “10 mm pins” without explaining the hole tolerance and inspection purpose.
Pin Gauge Tolerance and the 10% Rule
Pin gauge tolerance is the allowable manufacturing variation of the pin gauge itself. It is different from the part tolerance.
A common starting point in Go/No-Go gage selection is the 10% rule. This means a small portion of the product tolerance is allocated to the gauge tolerance. The exact rule, value, and direction should follow the applicable standard or customer requirement.
| Term | Meaning |
| Product tolerance | Allowed variation of the hole |
| Pin gauge tolerance | Allowed variation of the pin diameter |
| Tolerance class | Accuracy level of the pin gauge |
| Tolerance direction | Plus, minus, or bilateral |
| Wear allowance | Consideration for long-term gauge use |
If the hole tolerance is tight, the pin gauge tolerance becomes more important. A pin with too wide a tolerance may create unreliable pass/fail decisions near the limit.
Plus, Minus, and Bilateral Pin Gauges
Pin gauges may be supplied with different tolerance directions.
| Type | Meaning | Common Use |
| Plus pin gauge | Actual size is slightly above nominal within tolerance | Often used for GO inspection |
| Minus pin gauge | Actual size is slightly below nominal within tolerance | Often used for NO-GO inspection |
| Bilateral pin gauge | Tolerance is distributed around nominal | General measurement or special methods |
| Custom pin gauge | Made to a specific drawing requirement | Dedicated production inspection |
For Go/No-Go inspection, plus and minus pins are commonly used according to the inspection function. However, the correct choice should always be confirmed from the drawing tolerance, quality procedure, and supplier recommendation.
Pin Gauges vs Plug Gauges for Go/No-Go Hole Measurement
Pin gauges and plug gauges are closely related, but they are not always used in the same way.
| Item | Pin Gauge | Plug Gauge |
| Common form | Individual precision pin or pin set | Fixed-limit gauge, often with handle |
| Main use | Hole, slot, gap, and fit checking | Dedicated hole acceptance |
| Flexibility | High when using a full set | High efficiency for repeated holes |
| Go/No-Go use | Common | Common |
| Best for | Many sizes and inspection tasks | Dedicated production inspection |
If your inspection room checks many different hole sizes, a pin gage set may be practical. If your production line repeatedly checks the same hole, dedicated GO/NO-GO plug gauges or custom pins may be more efficient.
MISHUTE provides pin gauges for hole measurement and quality control applications. You can view related options through the pin gauges category.
Common Mistakes When Using Pin Gauges
Mistake 1: Forcing the Pin
A pin gauge should not be forced into the hole. Excessive force can damage the part, scratch the gauge, or create a false pass result.
Mistake 2: Ignoring Burrs and Chips
Burrs or chips can block the GO pin and make a good hole appear undersize. Always clean the part before inspection.
Mistake 3: Using the Wrong Pin Direction
Using the NO-GO pin as the GO pin, or confusing plus and minus pins, can cause wrong inspection decisions.
Mistake 4: Checking Only One Side of the Tolerance
Using only a GO pin confirms that the hole is large enough, but it does not confirm that the hole is not too large. Full acceptance usually requires both GO and NO-GO checks.
Mistake 5: Treating Pin Gauges as Full Measurement Tools
Pin gauges are excellent for fit checking, but they do not fully measure roundness, cylindricity, taper, or true position. Use additional tools when geometry is critical.
Mistake 6: Not Defining NO-GO Entry
If the procedure does not define whether partial NO-GO entry is allowed, different inspectors may judge the same part differently.
How to Choose a Pin Gage Set for Go/No-Go Inspection
When buying pin gauges, consider the inspection task first.
1. Metric or Inch
Choose the system that matches your drawings and measuring tools.
| Option | Suitable For |
| Metric pin gage set | Millimeter drawings and metric inspection |
| Inch pin gage set | Inch drawings and imperial inspection |
| Both systems | Export factories and mixed-standard production |
2. Diameter Range
Select a range that covers your common hole sizes. A broad set is useful for inspection rooms. Individual pins may be better for dedicated production lines.
3. Step Increment
Smaller increments allow more detailed size checking. Wider increments may be enough for general inspection.
4. Tolerance Class
Choose the tolerance class according to the hole tolerance and inspection risk. Tighter part tolerances require more careful gauge selection.
5. Material
| Material | Suitable Application |

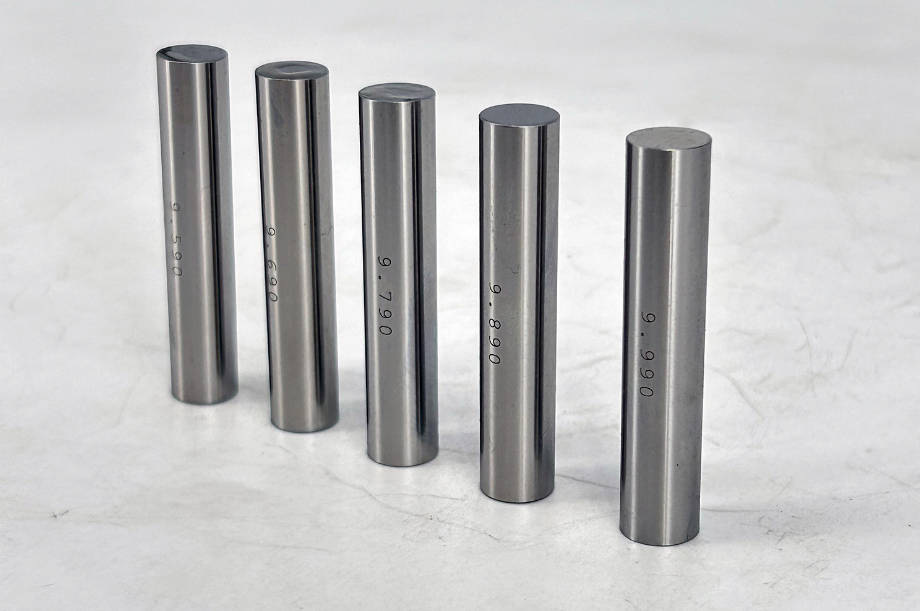

| Hardened steel | General inspection and cost-effective use |
| Ceramic | Corrosion-sensitive or non-magnetic applications |
| Tungsten carbide | Frequent inspection and high-wear environments |
6. Certificate
Confirm whether you need a calibration certificate, traceability, measured values, or individual pin identification.
What Information Should You Provide Before Ordering?
To help a supplier recommend the right pin gauges, prepare:
- Part drawing if available
- Nominal hole diameter
- Upper and lower tolerance limits
- Metric or inch requirement
- GO and NO-GO inspection purpose
- Diameter range
- Step increment
- Tolerance class
- Plus, minus, or bilateral direction
- Material requirement
- Quantity
- Custom length if needed
- Certificate requirement
- Inspection environment
- Expected use frequency
You can start from the MISHUTE website or review related product options on the MISHUTE pin gauges page.
How to Choose a Pin Gauge Supplier
A reliable supplier should help you confirm not only the diameter, but also the tolerance class, tolerance direction, material, and certificate requirement.
| Supplier Capability | Why It Matters |
| Standard and custom pin gauges | Supports both general inspection and dedicated production checks |
| Plus, minus, and bilateral options | Helps match Go/No-Go inspection logic |
| Multiple tolerance classes | Supports different accuracy requirements |
| Material options | Helps balance cost, wear, and corrosion resistance |
| Certificate support | Supports audits and traceability |
| Clear marking and packaging | Reduces operator error |
| Technical communication | Prevents wrong gauge selection |
For B2B buyers, the most important step is to provide the full tolerance requirement. A nominal size alone is usually not enough for reliable Go/No-Go gauge selection.
FAQ
How do you use pin gauges for Go/No-Go hole measurement?
Use a GO pin based on the minimum acceptable hole size and a NO-GO pin based on the maximum acceptable hole size. The GO pin should enter the hole, while the NO-GO pin should not enter under the defined inspection condition.
What does the GO pin gauge check?
The GO pin gauge checks whether the hole is large enough. If the GO pin does not enter, the hole may be undersize, or the hole may have burrs, chips, taper, or contamination.
What does the NO-GO pin gauge check?
The NO-GO pin gauge checks whether the hole is too large. If the NO-GO pin enters under the defined inspection condition, the hole may exceed the upper tolerance limit.
Can pin gauges measure the exact hole diameter?
Pin gauges provide fit-based inspection rather than full numerical measurement. They can estimate hole size by finding the largest fitting pin, but they do not fully measure roundness, taper, or cylindricity.
What pin gauge tolerance should I choose?
Choose pin gauge tolerance based on the part tolerance, inspection method, and quality requirement. Tighter hole tolerances usually require more precise pin gauges or a clearly defined Go/No-Go gauge specification.
Should I use plus or minus pin gauges for Go/No-Go inspection?
Plus pins are commonly used for GO inspection, and minus pins are commonly used for NO-GO inspection in many systems. The final selection should follow the drawing tolerance and inspection standard.
Do I need a full pin gage set or individual GO/NO-GO pins?
A full pin gage set is useful for checking many sizes. Individual GO/NO-GO pins are more efficient for repeated inspection of a specific production hole.
Are pin gauges suitable for CNC machined holes?
Yes. Pin gauges are widely used for CNC machined hole inspection because they provide fast, repeatable Go/No-Go checking for hole diameter and machining process control.
Conclusion
Pin gauges are practical tools for Go/No-Go hole measurement because they allow inspectors to check whether a hole is within tolerance quickly and consistently. The GO pin confirms that the hole is not too small, while the NO-GO pin confirms that the hole is not too large.
To use pin gauges correctly, start from the drawing tolerance, choose the correct GO and NO-GO sizes, clean the part and pins, insert the pins straight, avoid excessive force, and interpret the result according to a defined inspection procedure. For reliable purchasing, buyers should also confirm tolerance class, plus/minus direction, material, certificate, and whether standard or custom pin gauges are required.
MISHUTE supplies pin gauges for precision hole inspection, Go/No-Go measurement, and quality control applications. Visit the MISHUTE pin gauges category to learn more about available options.
