A gauge block set is a group of precision length standards used to calibrate measuring tools, set inspection equipment, and verify dimensional accuracy in manufacturing. To choose the right gauge block set, you need to consider the measurement system, size range, grade, material, calibration certificate, working environment, and the instruments you plan to check.
Gauge blocks, also called gage blocks, are widely used in calibration rooms, inspection departments, machining workshops, and quality control laboratories. They can be used individually or combined together to create precise reference lengths. For many factories, a precision gauge block set is not just a measuring accessory; it is a basic standard for maintaining measurement reliability.
If your company needs gauge blocks for dimensional inspection, tool calibration, or production quality control, MISHUTE supplies gauge block solutions for different industrial applications. You can explore related options on the MISHUTE gauge blocks page.
What Is a Gauge Block Set?
A gauge block set is a collection of precision blocks manufactured to highly controlled lengths. Each block has two flat, parallel measuring faces. By using one block or combining several blocks, inspectors can create a specific reference length.
Gauge blocks are commonly used to:
- Calibrate micrometers
- Check vernier and digital calipers
- Set height gauges
- Verify dial indicators
- Set sine bars
- Check comparators
- Build reference dimensions for inspection fixtures
- Support dimensional measurement in quality control
The main purpose of a gauge block set is to provide reliable reference lengths for calibration and inspection.
In many industrial environments, gauge blocks are used as transfer standards. This means they help transfer accuracy from a higher-level calibration standard to working measuring tools used on the shop floor.
Why Choosing the Right Gauge Block Set Matters
Choosing the wrong gauge block set can create several problems. A set with the wrong grade may not be accurate enough for calibration. A set with the wrong material may wear too quickly. A set with the wrong size range may not cover the measuring tools used in your factory.
For example, a CNC machining workshop may mainly need gauge blocks for checking micrometers, calipers, and height gauges. A calibration laboratory may need higher-grade blocks with traceable certificates. A high-volume production site may care more about wear resistance and long service life.
| Selection Factor | Why It Matters |
| Size range | Determines whether the set can cover your measuring tasks |
| Grade | Affects accuracy and suitable application level |
| Material | Influences wear resistance, corrosion resistance, and stability |
| Metric or inch | Must match your drawings and measuring tools |
| Certificate | Supports traceability and quality system requirements |
| Storage case | Protects blocks from damage, contamination, and corrosion |
| Application environment | Determines whether the set is for lab use or shop-floor use |
A suitable gauge block set should match your measuring instruments, tolerance requirements, inspection environment, and quality system.
Metric vs Inch Gauge Block Set: Which One Should You Choose?
The first decision is whether you need a metric gauge block set, an inch gauge block set, or both.
Metric Gauge Block Set
A metric gauge block set is suitable for manufacturers using millimeter-based drawings, metric measuring tools, and ISO-style dimensional requirements. It is commonly used in international manufacturing, CNC machining, automotive parts, mechanical components, and precision inspection.
Inch Gauge Block Set
An inch gauge block set is suitable for factories working with inch-based drawings, imperial measuring tools, or customers in markets where inch dimensions are still common. Many U.S.-oriented manufacturing projects may require inch gauge blocks.
When You May Need Both
Some manufacturers work with both metric and inch drawings. In this case, having both metric and inch gauge block sets can help reduce conversion errors and simplify calibration work.
| Type | Suitable For | Common Use Case |
| Metric gauge block set | Millimeter drawings and metric instruments | CNC machining, international parts, general inspection |
| Inch gauge block set | Inch drawings and imperial instruments | U.S.-market parts, inch micrometers, inch inspection tools |
| Both metric and inch sets | Mixed customer standards | Export manufacturers and multi-standard inspection rooms |
Choose the gauge block system that matches your drawings, measuring tools, and customer requirements.
How to Choose the Right Size Range
A gauge block set should cover the dimensions you commonly need to calibrate or inspect. Different sets may include different numbers of blocks, such as small starter sets, general-purpose sets, or larger sets with more size combinations.
When choosing the size range, consider:
- The measuring range of your micrometers
- The measuring range of your calipers
- The height gauge range you need to check
- The fixture setting dimensions
- The typical dimensions on your customer drawings
- Whether you need fine incremental combinations
- Whether you need blocks for small precision parts or larger components
For example, if you mainly calibrate 0–25 mm micrometers, a small metric set may be enough. If your inspection department checks a wide range of parts and measuring instruments, a larger set may be more practical.
| Application | Suggested Consideration |
| Micrometer calibration | Choose blocks that cover common micrometer ranges |
| Caliper checking | Select blocks across several length points |
| Height gauge setting | Consider larger block combinations |
| Precision fixture setup | Check whether fine increments are available |
| General QC room | A broader set may be more flexible |
| Calibration laboratory | Higher grade and wider coverage may be required |
A larger set offers more flexibility, but it may also cost more and require more careful management. The right choice depends on your actual measurement tasks.
Gauge Block Grades Explained
Gauge block grade is one of the most important selection factors. Different grades are used for different accuracy levels and working environments.
Common grades may include Grade K, Grade 00, Grade 0, Grade 1, and Grade 2, depending on the standard and manufacturer. The exact tolerance values depend on the applicable standard, block length, and manufacturer specification.
| Grade | Typical Application | General Selection Logic |
| Grade K | Calibration laboratories and high-level reference use | Used where very high accuracy and controlled conditions are required |
| Grade 00 | Precision calibration and inspection room use | Suitable for high-accuracy metrology work |
| Grade 0 | Inspection room and high-precision tool calibration | Commonly used for quality departments |
| Grade 1 | General inspection and production measurement support | Suitable for many factory inspection tasks |
| Grade 2 | Workshop use and lower-level reference checking | Often used closer to production environments |
Do not choose a higher grade only because it looks more professional. Choose the grade based on your tolerance requirement, instrument accuracy, and inspection environment.
For example, a shop-floor inspection task may not require the same grade as a calibration laboratory. On the other hand, if you are calibrating high-accuracy micrometers or setting master standards, a higher-grade set may be necessary.
Steel vs Ceramic vs Tungsten Carbide Gauge Blocks
Gauge block material affects durability, wear resistance, corrosion resistance, cost, and handling. The three common options are steel, ceramic, and tungsten carbide.

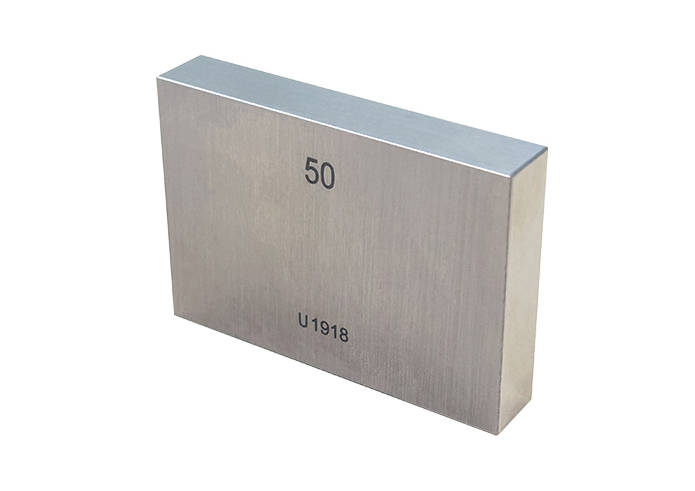

Steel Gauge Blocks
Steel gauge blocks are widely used because they are cost-effective and suitable for many general inspection tasks. They are commonly selected for workshop inspection, quality control departments, and general calibration use.
Advantages:
- Economical compared with higher-wear materials
- Widely available
- Suitable for general-purpose inspection
- Familiar to most operators
Considerations:
- Requires proper anti-rust care
- Can wear with frequent use
- Must be cleaned and stored correctly
Ceramic Gauge Blocks
Ceramic gauge blocks are often chosen when corrosion resistance, wear resistance, and dimensional stability are important. They are also useful in environments where non-magnetic properties may be beneficial.
Advantages:
- Good corrosion resistance
- Good wear resistance in many applications
- Non-magnetic
- Less likely to rust than steel
Considerations:
- Usually higher cost than steel
- Handling care is still required
- Selection should match the inspection environment
Tungsten Carbide Gauge Blocks
Tungsten carbide gauge blocks are selected for applications where wear resistance is especially important. They may be suitable for frequent use, abrasive environments, or inspection points that see repeated contact.
Advantages:
- High wear resistance
- Suitable for frequent use
- Long service life in many high-contact applications
- Good for demanding production inspection
Considerations:
- Higher cost
- Heavier than some alternatives
- May not be necessary for low-frequency inspection
| Material | Main Advantage | Suitable Application |
| Steel | Cost-effective and widely used | General inspection and calibration |
| Ceramic | Corrosion resistance and non-magnetic properties | Clean inspection rooms and corrosion-sensitive environments |
| Tungsten carbide | High wear resistance | High-frequency inspection and demanding production use |
For general inspection, steel gauge blocks are commonly used. For corrosion-sensitive environments, ceramic gauge blocks may be preferred. For frequent-use applications, tungsten carbide gauge blocks may offer better wear resistance.
MISHUTE can support different gauge block material requirements based on your inspection environment and usage frequency. You can review available product directions through the precision gauge blocks category.
Calibration Certificate and Traceability
A gauge block set is only useful if its accuracy is known and controlled. This is why calibration certificates are important for many buyers.
A calibration certificate may include:
- Block identification
- Nominal length
- Measured deviation
- Calibration date
- Calibration method
- Environmental conditions
- Measurement uncertainty
- Traceability information
- Standard reference
- Laboratory information
For ISO-based quality systems, customer audits, and precision manufacturing, calibration traceability is often required. Even when it is not strictly required, a certificate helps confirm that the gauge block set meets the expected accuracy level.
| Certificate Item | Why It Matters |
| Measured values | Shows actual deviation from nominal length |
| Uncertainty | Helps evaluate measurement reliability |
| Traceability | Connects the measurement to recognized standards |
| Calibration date | Supports calibration interval control |
| Block identification | Helps manage each block in the quality system |
Before ordering, confirm whether you need a factory certificate, third-party calibration certificate, or traceable calibration certificate. The required certificate level depends on your customer, industry, and internal quality system.
How Gauge Blocks Are Used for Calibration and Inspection
Gauge blocks can be used in several practical ways.
Micrometer Calibration
A gauge block can be used to check whether a micrometer reads correctly at specific points. For example, inspectors may use several block lengths across the micrometer range to check repeatability and accuracy.
Caliper Verification
Calipers can be checked at different opening positions using gauge block combinations. This helps identify reading deviation across the measuring range.
Height Gauge Setting
Gauge blocks can be stacked to create a reference height for height gauge setup or verification.
Comparator and Indicator Setup
Gauge blocks can be used as reference standards for dial indicators, test indicators, and comparators.
Fixture and Tooling Setup
In precision manufacturing, gauge blocks may help set fixture heights, checking distances, or inspection references.
| Measuring Tool | How Gauge Blocks Help |
| Micrometer | Checks reading accuracy at selected lengths |
| Caliper | Verifies inside/outside measurement reliability |
| Height gauge | Sets or verifies reference height |
| Dial indicator | Provides a reference displacement |
| Sine bar | Supports angle setup with calculated height |
| Fixture | Helps create controlled setup dimensions |
Gauge blocks are especially useful because they are modular. By combining blocks, inspectors can create many different lengths from a single set.
Common Mistakes When Buying Gauge Block Sets
1. Choosing Only by Price
Low-cost gauge blocks may be acceptable for some basic tasks, but price alone should not be the main decision factor. Material, grade, certificate, and long-term stability are more important for precision work.
2. Ignoring the Required Grade
Buying a grade that is too low may create measurement risk. Buying a grade that is too high may increase cost without practical benefit. Match the grade to the application.
3. Forgetting Metric or Inch Requirements
If your drawings are in millimeters, a metric set is usually more practical. If your customers use inch drawings, you may need an inch set.
4. Not Checking Certificate Requirements
Some customers require traceable calibration. If you buy a set without the correct certificate, it may not satisfy audit or inspection requirements.
5. Poor Handling and Storage
Gauge blocks must be cleaned, protected, and stored properly. Dirt, oil, corrosion, scratches, or impact damage can affect accuracy.
6. Using Gauge Blocks in the Wrong Environment
Temperature, dust, humidity, and handling conditions can affect measurement reliability. High-grade blocks should be used in controlled environments when accuracy is critical.
Maintenance Tips for Gauge Block Sets
Proper maintenance helps extend service life and protect measurement reliability.
Recommended practices include:
- Clean gauge blocks before and after use
- Avoid touching measuring faces directly with bare hands
- Use proper anti-corrosion protection for steel blocks
- Store blocks in their original case
- Avoid dropping or sliding blocks on hard surfaces
- Inspect for burrs, scratches, or wear
- Follow a defined calibration interval
- Keep records for quality management
- Use blocks in a stable temperature environment when required
Gauge blocks should be treated as precision standards, not ordinary metal blocks. Careful handling directly affects inspection reliability.
For frequent-use environments, consider using working sets for daily inspection and keeping a higher-grade reference set for calibration or verification.
How to Choose a Gauge Block Supplier
A reliable gauge block supplier should understand not only product size, but also application requirements. Before ordering, it is helpful to prepare clear technical information.
You should confirm:
- Metric or inch standard
- Required size range
- Required grade
- Material: steel, ceramic, or tungsten carbide
- Certificate requirement
- Quantity
- Application: calibration, inspection, workshop use, or laboratory use
- Packaging and storage case requirements
- Any customer-specific standard
| Supplier Capability | Why It Matters |
| Multiple material options | Helps match cost, wear, and environment |
| Grade selection support | Reduces risk of overbuying or under-specifying |
| Certificate support | Helps meet audit and traceability requirements |
| Clear product marking | Supports block identification and management |
| Stable quality control | Important for repeatable measurement |
| Technical communication | Helps buyers choose the correct set |
MISHUTE provides gauge blocks for industrial calibration and inspection applications. If you are selecting a gauge block set for your quality department, calibration room, or production inspection team, you can visit the MISHUTE gauge blocks page or start from the MISHUTE homepage to review related precision gauge products.
FAQ
What is a gauge block set used for?
A gauge block set is used to provide precise reference lengths for calibration, inspection, and measuring equipment setup. It is commonly used to check micrometers, calipers, height gauges, indicators, and inspection fixtures.
How do I choose the right gauge block set?
To choose the right gauge block set, confirm your measurement system, size range, grade, material, certificate requirement, and application environment. The set should match your measuring tools and tolerance requirements.
What is the difference between gauge blocks and gage blocks?
Gauge blocks and gage blocks refer to the same type of precision length standard. “Gauge” is the more general spelling, while “gage” is also widely used in the U.S. metrology and industrial measuring industry.
Which gauge block grade should I choose?
Choose the grade based on your accuracy requirement and working environment. Higher grades are typically used for calibration laboratories and precision inspection rooms, while lower grades may be suitable for general workshop inspection.
Are ceramic gauge blocks better than steel gauge blocks?
Ceramic gauge blocks offer good corrosion resistance, wear resistance, and non-magnetic properties. Steel gauge blocks are cost-effective and widely used for general inspection. The better choice depends on your application, environment, and budget.
Do gauge blocks need calibration certificates?
For quality systems, customer audits, and precision calibration work, calibration certificates are usually important. A certificate helps document measured values, uncertainty, traceability, and calibration date.
Should I buy a metric or inch gauge block set?
Choose a metric gauge block set if your drawings and measuring tools are metric. Choose an inch gauge block set if your work is based on inch dimensions. Some export manufacturers may need both.
How should gauge blocks be stored?
Gauge blocks should be cleaned, protected from corrosion, stored in their case, and handled carefully to avoid scratches, burrs, or impact damage. Steel blocks may require additional anti-rust care.
Conclusion
Choosing the right gauge block set requires more than selecting a box of precision blocks. You need to consider the measurement system, size range, grade, material, certificate, working environment, and actual inspection tasks.
For general factory inspection, a standard steel gauge block set may be suitable. For corrosion-sensitive or clean inspection environments, ceramic gauge blocks may be a practical choice. For frequent-use or high-wear applications, tungsten carbide gauge blocks may provide better durability. For calibration laboratories or strict quality systems, grade and certificate requirements become especially important.
If you need gauge blocks for calibration, inspection, or quality control, MISHUTE can help you select suitable precision gauge blocks according to your application. Visit the MISHUTE gauge blocks category to learn more about available options.
