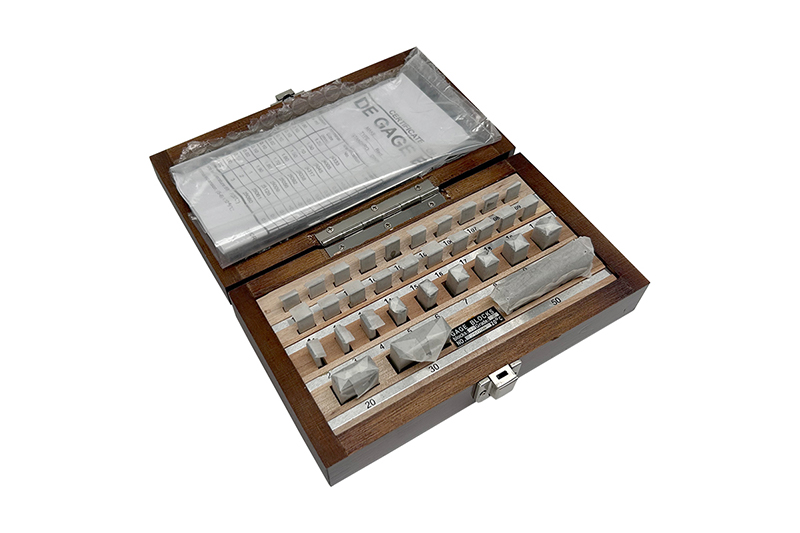

High-Precision Tungsten Carbide Gauge Blocks
- Extreme Longevity: 50-100 times more wear-resistant than standard steel, significantly extending calibration intervals.
- Superior Rigidity: High modulus of elasticity ensures minimal deformation under pressure, providing absolute dimensional stability.
- Optimal Wringability: Mirror-lapped surfaces for effortless wringing and minimal cumulative error in stacks.
- Industrial Grade Reliability: The premier choice for high-frequency workshop use and master gauge setting.
Product Overview
The tungsten carbide gauge blocks (also known as cemented carbide gauge blocks) produced by MISHUTE Precision (Meter Precision) are designed as measurement standards for industrial environments requiring extremely high wear resistance.
Made from ultra-fine grain tungsten carbide, their hardness (HV1500 and above) is far superior to that of conventional tool steels. In high-intensity measurement applications with frequent contact with workpieces, tungsten carbide gauge blocks effectively resist scratching and wear, ensuring long-term consistency of measurement data.
Each of our tungsten carbide gauge blocks undergoes multiple precision lapping processes, achieving extremely low surface roughness and excellent wringing performance. Combined with strict inspection in a 20°C constant-temperature laboratory, MISHUTE tungsten carbide gauge blocks provide a solid measurement foundation for aerospace, automotive manufacturing, and precision machining industries.
Ultra-High Hardness & Wear Resistance
Exceptional Dimensional Stability & Rigidity
Precision Lapping & Perfect Wringing Performance
Special Use for Calipers(0-150mm)
Module | Detailed Specifications (mm) | Grade | Product Code |
2 Pieces |
41.3;131.4 | k | 812290 |
0 | 812291 | ||
1 | 812292 | ||
6 Pieces | 10;20;20;41.2; 81.5;121.8 | k | 812310 |
0 | 812311 | ||
1 | 812312 |
**The 2-piece set complies with the international standard ISO 3650, whilst the 6-piece set complies with the Chinese national standard GB/T 6093
Special Use for Micrometers(0-100mm)
Block Set | Detailed Dimensions (mm) | Grade | Product Code |
10 blocks + flat gauge Suitable for 0–25 mm micrometers | 2.5;5.1;7.7;10.3; 12.9;15;17.6;20.2; 22.8;25;ψ30One optical flat | k | 812250 |
0 | 812251 | ||
1 | 812252 | ||
11 blocks Suitable for 25–50 mm micrometers | 25;27.5;30.1;32.7; 35.3;37.9;40;42.6; 45.2;47.8;50 | k | 812260 |
0 | 812261 | ||
1 | 812262 | ||
11 blocks Suitable for 50–75 mm micrometers | 50;52.5;55.1;57.7; 60.3;62.9;65;67.6; 70.2;72.8;75 | k | 812270 |
0 | 812271 | ||
1 | 812272 | ||
11 blocks Suitable for 75–100 mm micrometers | 75;77.5;80.1;82.7; 85.3;87.9;90;92.6; 95.2;97.8;100 | k | 812280 |
0 | 812281 | ||
1 | 812282 | ||
20 blocks Suitable for 0–100 mm micrometers | 5.12;10.24;15.36;21.5;25; 30.12;35.24;40.36;46.5;50; 55.12;60.24;65.36;71.5;75; 80.12;85.24;90.36;96.5;100 | k | 812300 |
0 | 812301 | ||
1
| 812302 |
**The 10-piece and 11-piece sets comply with the international standard ISO 3650, whilst the 20-piece set complies with the Chinese national standard GB/T 6093
Set, commonly used (Metric–812 series)
Block set | Detailed dimensions (mm) | Grade | Product code |
10 pieces, JIS standard | 1;1.25;1.5;2;3;5;10; 15;20;25 | k | 812400 |
0 | 812401 | ||
1 | 812402 | ||
32 pieces, ISO standard | 1.005 1.01–1.09, in 0.01 increments, 9 blocks in total 1.1–1.9, in 0.1 increments, 9 blocks in total 1–9, in 1-unit increments, 9 blocks in total 58–30, in 10-unit increments, 3 blocks in total | k | 812230 |
0 | 812231 | ||
1 | 812232 | ||
32 pieces, JIS standard | 1.005 1.01–1.09, in increments of 0.01, 9 segments in total 1.1–1.9, in increments of 0.1, 9 segments in total 1–9, in increments of 1, 9 segments in total 10–30, in increments of 10, 3 segments in total 60 | k | 812240 |
0 | 812241 | ||
1 | 812242 | ||
38 pieces GB/T 6093, Chinese national standard | 1.005 1.01–1.09, in increments of 0.01, 9 values in total 1.1–1.9, in increments of 0.1, 9 values in total 2–9, in increments of 1, 3 values in total 10–100, in increments of 10, 10 values in total
| k | 812410 |
0 | 812411 | ||
1 | 812412 | ||
46 pieces, ISO standard | 1.001–1.009, in increments of 0.001, 9 segments in total 1.01–1.09, in increments of 0.01, 9 segments in total 1.1–1.9, in increments of 0.1, 9 segments in total 1–9, in increments of 1, 9 segments in total 10–100, in increments of 1, 10 segments in total | k | 812220 |
0 | 812221 | ||
1 | 812222 | ||
47 pieces, ISO standard | 1.005 1.01–1.19, in increments of 0.01, 9 segments in total 1.2–1.9, in increments of 0.1, 8 segments in total 1–9, in increments of 1, 9 segments in total 10–100, in increments of 10, 10 segments in total | k | 812210 |
0 | 812211 | ||
1 | 812212 | ||
47 pieces, JIS standard | 1.005 1.01–1.19, interval 0.01, total 9 segments 1.1–1.9, interval 0.1, total 9 segments 1–24, interval 1, total 24 segments 25–100, interval 25, total 4 segments | k | 812200 |
0 | 812201 | ||
1 | 812202 | ||
56 pieces, JIS standard | 0.5 1.001 – – 1.009, interval 0.001, total 9 blocks 1.01 – – 1.09, interval 0.01, total 9 blocks 1.1 – – 1.9, interval 0.1, total 9 blocks 1 – – 24, interval 1, total 24 blocks 25 – – 100, interval 25, total 4 blocks | k | 812190 |
0 | 812191 | ||
1 | 812192 | ||
76 pieces, JIS standard | 1.005 1.01–1.49, interval 0.01, total 49 blocks 0.5–10, interval 0.5, total 20 blocks 20–50, interval 10, total 4 blocks 75 | k | 812180 |
0 | 812181 | ||
1 | 812182 | ||
83 pieces GB/T 6093, Chinese National Standard | 0.5 1.005 1.5–1.9, interval 0.1, total 5 blocks 2.0–9.5, interval 0.5, total 16 blocks 10–100, interval 10, total 10 blocks | k | 812170 |
0 | 812171 | ||
1 | 812172 | ||
87 pieces, ISO standard | 1.001–1.009, in increments of 0.001, 9 values in total 1.01–1.49, in increments of 0.01, 49 values in total 0.5–9.5, in increments of 0.1, 9 values in total 10–100, in increments of 10, 10 values in total | k | 812160 |
0 | 812161 | ||
1 | 812162 | ||
88 pieces, JIS standard
| 1.0005 1.001–1.009 in increments of 0.001, 9 ranges in total 1.01–1.49 in increments of 0.01, 49 ranges in total 0.5–9.5 in increments of 0.5, 19 ranges in total 10–100 in increments of 10, 10 ranges in total | k | 812150 |
0 | 812151 | ||
1 | 812152 | ||
91 pieces GB/T 6093, Chinese National Standard | 09–10, 502, total blocks 001–149, intervals of 001, total 49 blocks 1.5–1.9, intervals of 0.1, total 5 blocks 2.0–9.5, intervals of 0.5, total 16 blocks 10–100, intervals of 10, total 10 blocks | k | 812140 |
0 | 812141 | ||
1 | 812142 | ||
103 pieces, ISO standard | 1.005 1.01–1.49, in increments of 0.01, 49 blocks in total 0.5–24.5, in increments of 0.5, 49 blocks in total; 25–100, in increments of 25, 4 blocks in total | k 0 1 | 812130 |
812131 | |||
812132 | |||
112 pieces, ISO standard | 1.0005 1.001–1.009, in increments of 0.001, 9 intervals in total 1.01–1.49, in increments of 0.01, 49 intervals in total 0.5–24.5, in increments of 0.5, 49 intervals in total 25–100, in increments of 25, 4 intervals in total | k 0 1 | 812130 |
812131 | |||
812132 | |||
111 pieces, ISO standard
| 1.001–1.009, in increments of 0.001, 9 segments in total 1.01–1.49, in increments of 0.01, 49 segments in total 1.6–1.9, in increments of 0.1, 4 segments in total 0.5–24.5, in increments of 0.5, 49 segments in total 30–100, in increments of 10, 8 segments in total | k 0 1 | 812110 |
812111 | |||
812112 | |||
122 pieces, ISO standard | 1.0005 1.001–1.009 in increments of 0.001, 9 pieces in total 1.01–1.49 in increments of 0.01, 49 pieces in total 1.6–1.9 in increments of 0.1, 4 pieces in total 0.5–24.5, in increments of 0.5, 49 values in total; 30–100, in increments of 10, 8 values in total | k 0 1 | 812100 |
812101 | |||
812102 |
Applications
-
Precision Machining
Serves as the highest-level reference standard for CNC machining centers and grinding machine positioning. -
Gauge Calibration
Used for regular calibration of general measuring instruments such as micrometers, calipers, and digital height gauges. -
Automotive Manufacturing
Applied in on-site monitoring for high-frequency, high-volume inspection of engine components, transmission systems, and other parts. -
Wear Block Protection
Used as protective layers in complex gauge block combinations to prevent wear of precision steel or ceramic gauge blocks.
Packaging & Shipping
Precision Anti-Rust Protection
Sealed Protection
Premium Storage Case
Global Logistics
AQ about Tungsten Carbide Gauge Blocks
The biggest advantage of tungsten carbide gauge blocks is their superior impact resistance and high-density feel. Although ceramic also offers very high hardness, it is relatively brittle. Tungsten carbide maintains extreme hardness while offering better toughness, making it more resistant to chipping in workshop environments. In addition, its high density provides users with a more tactile and stable “wringing feel” during use.
Yes. The thermal expansion coefficient of tungsten carbide is approximately 4.2 × 10⁻⁶, while that of steel is about 11.5 × 10⁻⁶. When measuring steel workpieces outside a 20°C environment, temperature compensation is required. This is precisely why tungsten carbide is an ideal high-precision reference material in controlled laboratory conditions.
Tungsten carbide itself has excellent corrosion resistance, but rust spots may still occur in humid or corrosive environments. After use, it is recommended to wipe the surface with a lint-free cloth to remove fingerprints and moisture, apply a small amount of acid-free anti-rust oil, and store the blocks in a dry protective case.
Yes. In addition to standard sets, MISHUTE Precision supports customization of special thicknesses, special lengths (up to 500 mm and above), as well as hole-type or irregular-shaped gauge blocks. All customized products maintain full traceable factory accuracy.
