High-Precision Zirconia Ceramic Gauge Blocks (ISO 3650 Standard)

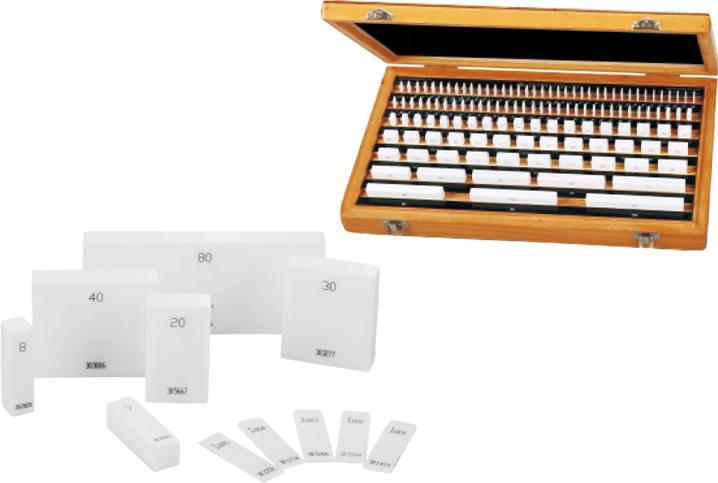

Ceramic gauge blocks, also known as ceramic block gauges or ceramic gauges, are manufactured from the ultra-hard material zirconia (ZrO₂). They have a rectangular cross-section and feature a pair of parallel measuring surfaces. These surfaces can adhere to the measuring surfaces of another gauge block or to an object with similar measuring surfaces through molecular forces, making them a high-precision length measurement tool.
Product Overview
Meter Precision’s Ceramic Gauge Blocks represent the pinnacle of dimensional metrology. Manufactured from ultra-pure Zirconium Oxide (ZrO₂), these blocks are designed to overcome the limitations of traditional steel gauges. Unlike metal, ceramic is immune to corrosion from skin acids or humidity, making it the ideal choice for high-precision laboratories and demanding shop floors. Our blocks offer exceptional “wringability,” allowing for stable, high-accuracy stacks with minimal cumulative error. Whether for calibrating micrometers or acting as a primary reference standard, our ceramic gauges provide the “Universal Language of Length” with unmatched reliability.
Unmatched Wear Resistance (1350 HV Hardness)
Superior Wringing Performance
Non-Magnetic & Thermal Stability
Standards
- DIN EN ISO 3650 、JIS B7506 、ASME B89 、GB/T 6093
Product Labelling

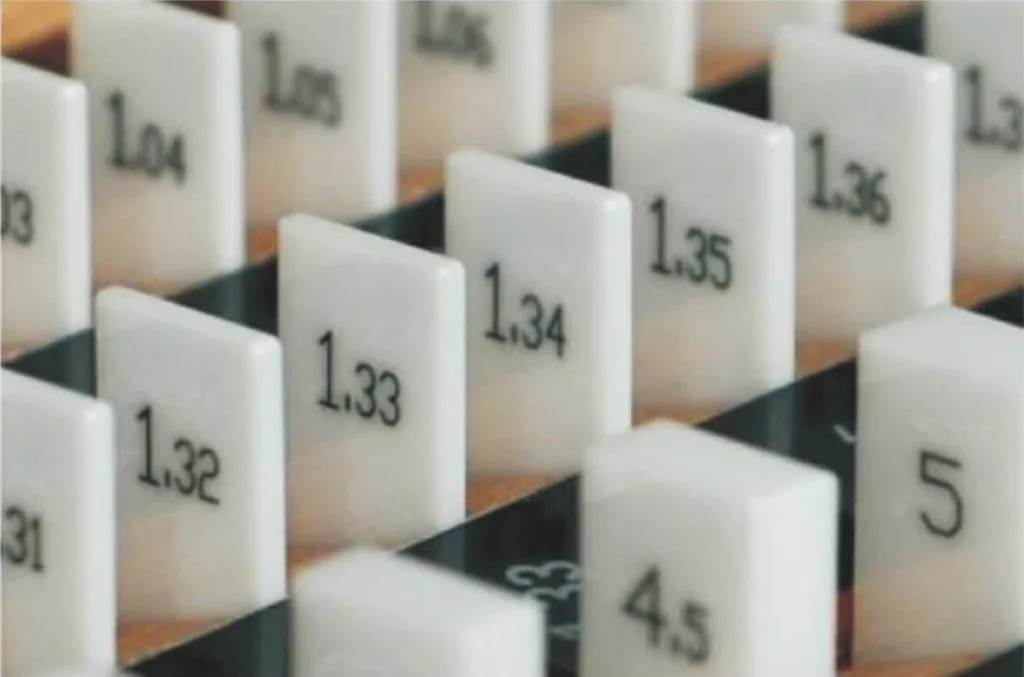

- The nominal length and product serial number are laser-engraved onto the product’s surface, ensuring they are clear, easily identifiable and fade-resistant.
Dimensions
- 0.5 mm ≤ nominal length ≤ 10 mm Cross-section: 30 × 9 mm
- 10 mm < nominal length ≤ 150 mm Cross-section: 35 × 9 mm
Classification
- Classified by unit of length: Metric (mm) and Imperial (inch)
- Classified by packaging: Single and Set
- Classified by accuracy grade: Metric grades K, 0 and 1; Imperial grades 0, 1 and 2
- Classified by dimensions: Standard and non-standard sizes
Special Use for Calipers(0-150mm)
Module | Detailed Specifications (mm) | Grade | Product Code |
2 Pieces |
41.3;131.4 | k | 812290 |
0 | 812291 | ||
1 | 812292 | ||
6 Pieces | 10;20;20;41.2; 81.5;121.8 | k | 812310 |
0 | 812311 | ||
1 | 812312 |
**The 2-piece set complies with the international standard ISO 3650, whilst the 6-piece set complies with the Chinese national standard GB/T 6093
Special Use for Micrometers(0-100mm)
Block Set | Detailed Dimensions (mm) | Grade | Product Code |
10 blocks + flat gauge Suitable for 0–25 mm micrometers | 2.5;5.1;7.7;10.3; 12.9;15;17.6;20.2; 22.8;25;ψ30One optical flat | k | 812250 |
0 | 812251 | ||
1 | 812252 | ||
11 blocks Suitable for 25–50 mm micrometers | 25;27.5;30.1;32.7; 35.3;37.9;40;42.6; 45.2;47.8;50 | k | 812260 |
0 | 812261 | ||
1 | 812262 | ||
11 blocks Suitable for 50–75 mm micrometers | 50;52.5;55.1;57.7; 60.3;62.9;65;67.6; 70.2;72.8;75 | k | 812270 |
0 | 812271 | ||
1 | 812272 | ||
11 blocks Suitable for 75–100 mm micrometers | 75;77.5;80.1;82.7; 85.3;87.9;90;92.6; 95.2;97.8;100 | k | 812280 |
0 | 812281 | ||
1 | 812282 | ||
20 blocks Suitable for 0–100 mm micrometers | 5.12;10.24;15.36;21.5;25; 30.12;35.24;40.36;46.5;50; 55.12;60.24;65.36;71.5;75; 80.12;85.24;90.36;96.5;100 | k | 812300 |
0 | 812301 | ||
1
| 812302 |
**The 10-piece and 11-piece sets comply with the international standard ISO 3650, whilst the 20-piece set complies with the Chinese national standard GB/T 6093
Set, commonly used (Metric–812 series)
Block set | Detailed dimensions (mm) | Grade | Product code |
10 pieces, JIS standard | 1;1.25;1.5;2;3;5;10; 15;20;25 | k | 812400 |
0 | 812401 | ||
1 | 812402 | ||
32 pieces, ISO standard | 1.005 1.01–1.09, in 0.01 increments, 9 blocks in total 1.1–1.9, in 0.1 increments, 9 blocks in total 1–9, in 1-unit increments, 9 blocks in total 58–30, in 10-unit increments, 3 blocks in total | k | 812230 |
0 | 812231 | ||
1 | 812232 | ||
32 pieces, JIS standard | 1.005 1.01–1.09, in increments of 0.01, 9 segments in total 1.1–1.9, in increments of 0.1, 9 segments in total 1–9, in increments of 1, 9 segments in total 10–30, in increments of 10, 3 segments in total 60 | k | 812240 |
0 | 812241 | ||
1 | 812242 | ||
38 pieces GB/T 6093, Chinese national standard | 1.005 1.01–1.09, in increments of 0.01, 9 values in total 1.1–1.9, in increments of 0.1, 9 values in total 2–9, in increments of 1, 3 values in total 10–100, in increments of 10, 10 values in total
| k | 812410 |
0 | 812411 | ||
1 | 812412 | ||
46 pieces, ISO standard | 1.001–1.009, in increments of 0.001, 9 segments in total 1.01–1.09, in increments of 0.01, 9 segments in total 1.1–1.9, in increments of 0.1, 9 segments in total 1–9, in increments of 1, 9 segments in total 10–100, in increments of 1, 10 segments in total | k | 812220 |
0 | 812221 | ||
1 | 812222 | ||
47 pieces, ISO standard | 1.005 1.01–1.19, in increments of 0.01, 9 segments in total 1.2–1.9, in increments of 0.1, 8 segments in total 1–9, in increments of 1, 9 segments in total 10–100, in increments of 10, 10 segments in total | k | 812210 |
0 | 812211 | ||
1 | 812212 | ||
47 pieces, JIS standard | 1.005 1.01–1.19, interval 0.01, total 9 segments 1.1–1.9, interval 0.1, total 9 segments 1–24, interval 1, total 24 segments 25–100, interval 25, total 4 segments | k | 812200 |
0 | 812201 | ||
1 | 812202 | ||
56 pieces, JIS standard | 0.5 1.001 – – 1.009, interval 0.001, total 9 blocks 1.01 – – 1.09, interval 0.01, total 9 blocks 1.1 – – 1.9, interval 0.1, total 9 blocks 1 – – 24, interval 1, total 24 blocks 25 – – 100, interval 25, total 4 blocks | k | 812190 |
0 | 812191 | ||
1 | 812192 | ||
76 pieces, JIS standard | 1.005 1.01–1.49, interval 0.01, total 49 blocks 0.5–10, interval 0.5, total 20 blocks 20–50, interval 10, total 4 blocks 75 | k | 812180 |
0 | 812181 | ||
1 | 812182 | ||
83 pieces GB/T 6093, Chinese National Standard | 0.5 1.005 1.5–1.9, interval 0.1, total 5 blocks 2.0–9.5, interval 0.5, total 16 blocks 10–100, interval 10, total 10 blocks | k | 812170 |
0 | 812171 | ||
1 | 812172 | ||
87 pieces, ISO standard | 1.001–1.009, in increments of 0.001, 9 values in total 1.01–1.49, in increments of 0.01, 49 values in total 0.5–9.5, in increments of 0.1, 9 values in total 10–100, in increments of 10, 10 values in total | k | 812160 |
0 | 812161 | ||
1 | 812162 | ||
88 pieces, JIS standard
| 1.0005 1.001–1.009 in increments of 0.001, 9 ranges in total 1.01–1.49 in increments of 0.01, 49 ranges in total 0.5–9.5 in increments of 0.5, 19 ranges in total 10–100 in increments of 10, 10 ranges in total | k | 812150 |
0 | 812151 | ||
1 | 812152 | ||
91 pieces GB/T 6093, Chinese National Standard | 09–10, 502, total blocks 001–149, intervals of 001, total 49 blocks 1.5–1.9, intervals of 0.1, total 5 blocks 2.0–9.5, intervals of 0.5, total 16 blocks 10–100, intervals of 10, total 10 blocks | k | 812140 |
0 | 812141 | ||
1 | 812142 | ||
103 pieces, ISO standard | 1.005 1.01–1.49, in increments of 0.01, 49 blocks in total 0.5–24.5, in increments of 0.5, 49 blocks in total; 25–100, in increments of 25, 4 blocks in total | k 0 1 | 812130 |
812131 | |||
812132 | |||
112 pieces, ISO standard | 1.0005 1.001–1.009, in increments of 0.001, 9 intervals in total 1.01–1.49, in increments of 0.01, 49 intervals in total 0.5–24.5, in increments of 0.5, 49 intervals in total 25–100, in increments of 25, 4 intervals in total | k 0 1 | 812130 |
812131 | |||
812132 | |||
111 pieces, ISO standard
| 1.001–1.009, in increments of 0.001, 9 segments in total 1.01–1.49, in increments of 0.01, 49 segments in total 1.6–1.9, in increments of 0.1, 4 segments in total 0.5–24.5, in increments of 0.5, 49 segments in total 30–100, in increments of 10, 8 segments in total | k 0 1 | 812110 |
812111 | |||
812112 | |||
122 pieces, ISO standard | 1.0005 1.001–1.009 in increments of 0.001, 9 pieces in total 1.01–1.49 in increments of 0.01, 49 pieces in total 1.6–1.9 in increments of 0.1, 4 pieces in total 0.5–24.5, in increments of 0.5, 49 values in total; 30–100, in increments of 10, 8 values in total | k 0 1 | 812100 |
812101 | |||
812102 |
Product Advantages
- The material boasts high hardness and excellent wear resistance, with a service life 5–10 times that of steel blocks and 4–5 times that of carbide blocks. It is currently the material with the longest service life and longest calibration intervals used in measuring instruments.
- Excellent corrosion resistance; it is not damaged by general chemical reagents and can be handled bare-handed during use without the need for anti-rust treatment. Lapping blocks can be stored for extended periods without requiring special treatment during use or storage.
- The material exhibits excellent stability with minimal annual variation, allowing for appropriately extended calibration intervals.
- Crafted from fine-grade material and super-finely ground, the blocks feature a smooth surface, high lapping force and superior lapping accuracy.
- With a coefficient of linear expansion similar to that of commonly used steel materials, they can replace metal blocks; no temperature correction is required when measuring the length of steel products.
- Non-magnetic and non-conductive, suitable for use in special applications.
- With over twenty years’ extensive experience in the production of ceramic gauge blocks, we possess multiple sets of international and domestic standards, as well as advanced imported gauge block testing equipment. We strictly adhere to relevant international standards and quality management system requirements throughout the entire process, from raw material preparation to machining, finished products and inspection. Having accumulated a wealth of production and sales experience over more than two decades, we continue to provide high-quality products and services to both new and existing customers.
Packaging & Shipping
Individual Blocks
Sets
Shipping
FAQ about Plain Gauges
Ceramic blocks are rust-proof and do not require oiling before or after use. This makes them much cleaner and more efficient. Additionally, if a ceramic block is dropped, it doesn’t develop a “burr” that ruins the next measurement; it simply chips or remains flat.
Yes, they can be wrung together. However, we recommend using ceramic blocks for the entire stack to maintain consistent thermal expansion and avoid potential scratching of the steel surfaces by the harder ceramic.
It is slightly lower ($9.5 \times 10^{-6}$) compared to steel ($11.5 \times 10^{-6}$). For most workshop applications, this difference is negligible, but for ultra-high precision laboratory work, temperature compensation should be applied.
Yes. Every Meter Precision gauge block comes with a factory inspection report. We also offer optional third-party certification from CNAS or DAkkS accredited labs upon request.
