High-Precision Thread Gauges: M Series
Master-grade thread plug and ring gauges crafted from premium Tungsten Carbide and Ceramics. Calibrated at 20° for aerospace, medical, and defense industries.

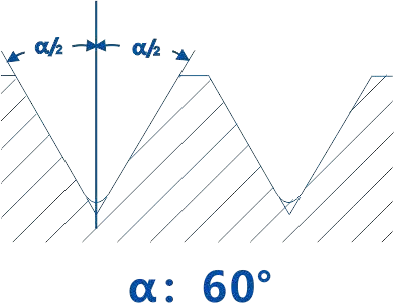

MISHUTE M Series Metric Thread Gauges: Precision-Engineered to ISO 1502 Standards for Global Industrial Excellence
In high-precision manufacturing, the difference between a seamless assembly and a costly failure lies in a few microns. MISHUTE M Series Metric Thread Gauges are designed for engineers and procurement professionals who refuse to compromise on accuracy. Whether you are verifying critical fasteners for automotive assembly or high-stress aerospace components, MISHUTE provides the metrology-grade certainty your production line demands.
Fully compliant with ISO 1502:1996 and GB/T 3934-2003, MISHUTE gauges solve the industry’s most common pain point: inconsistent thread fit. By implementing our high-hardness gauging solutions, manufacturers can significantly reduce scrap rates, prevent cross-threading issues, and ensure 100% interchangeability for international exports.
Thread Ring Gauges
Standard material: GCr15
Optional materials:
SKD11, CrWMn, and other machinable materials
Material hardness: 58–65 HRC
Common tolerance grades:
4h, 5g, 5h, 6e, 6f, 6g, 6h, 7e, 7g, 7h, 8e, 8g, 8h
Recommended standard fit: 6H/6g
Thread Plug Gauges
Standard material: GCr15
Optional materials:
SKD11, CrWMn, other machinable materials
Material hardness: 58–65 HRC
Common tolerance grades:
4H, 5G, 5H, 6G, 6H, 7G, 7H, 8G, 8H
Recommended common fit: 6H/6G
Technical Specifications
| Nominal diameter | Standard pitch | Non-standard pitch | |||||
| 0.8 | 0.2 | ||||||
| 1 | 0.2 | ||||||
| 1.1 | 0.25 | ||||||
| 1.2 | |||||||
| 1.4 | 0.3 | ||||||
| 1.6 | 0.35 | ||||||
| 1.8 | |||||||
| 2 | 0.4 | 0.25 | |||||
| 2.2 | 0.45 | ||||||
| 2.5 | 0.35 | ||||||
| 3 | 0.5 | ||||||
| 3.5 | 0.6 | ||||||
| 4 | 0.7 | 0.5 | |||||
| 4.5 | 0.75 | ||||||
| 5 | 0.8 | ||||||
| 5.5 | |||||||
| 6 | 1 | 0.75 | 0.5 | ||||
| 7 | |||||||
| 8 | 1.25 | 1 | 0.75 | 0.5 | |||
| 9 | |||||||
| 10 | 1.5 | 1.25 | 1 | 0.75 | 0.5 | ||
| 11 | |||||||
| 12 | 1.75 | 1.5 | 1.25 | 1 | 0.75 | 0.5 | |
| 14 | 2 | ||||||
| 15 | 1 | ||||||
| 16 | 2 | 0.75 | 0.5 | ||||
| 17 | |||||||
| 18 | 2.5 | 2 | 1.5 | 1 | 0.75 | 0.5 | |
| 20 | |||||||
| 22 | |||||||
| 24 | 3 | ||||||
| 25 | |||||||
| 26 | |||||||
| 27 | 3 | 2 | 1 | 0.75 | |||
| 28 | |||||||
| 30 | 3.5 | 3 | 2 | 1 | 0.75 | ||
| 32 | |||||||
| 33 | 3.5 | 3 | 2 | 1.5 | 1 | 0.75 | |
| 35 | 4 | 3 | |||||
| 36 | 1 | ||||||
| 38 | 4 | 3 | 2 | ||||
| 39 | 1 | ||||||
| 40 | |||||||
| 42 | 4.5 | 4 | |||||
| 45 | 1 | ||||||
| 48 | 5 | 1 | |||||
| 50 | |||||||
| 52 | 5 | ||||||
| 55 | |||||||
| 56 | 5.5 | 3 | 2 | 1.5 | 1 | ||
| 58 | |||||||
| 60 | 5.5 | 4 | 1 | ||||
| 62 | |||||||
| 64 | 6 | 1 | |||||
| 65 | |||||||
| 68 | 1 | ||||||
| 70 | 6 | 4 | 3 | ||||
| 72 | 1.5 | 1 | |||||
| 75 | |||||||
| 76 | 6 | 1 | |||||
| 78 | |||||||
| 80 | 6 | 4 | 3 | 1.5 | 1 | ||
| 82 | |||||||
| 85 | |||||||
| 90 | |||||||
| 95 | |||||||
| 100 | |||||||
Legend：M10x Ph3 P1.5-6H LH
M: Thread designation code (MJ: aviation-specific thread code; SM: extra-fine pitch thread code)
10: Nominal thread diameter
Ph3: Lead (lead/pitch for multi-start threads)
P1.5: Pitch
6H: Thread tolerance class
LH: Left-hand thread (may be omitted for right-hand threads)
T/GO: Go end (can be fully engaged with the workpiece thread)
Z/NOGO: No-go end (cannot be fully engaged with the workpiece thread; engagement does not exceed 2 pitches)
TT: Pass-Pass (Fully engages with the open end of the new-style thread ring gauge)
TZ: Pass-Stop (Fails to fully engage with the open end of the new-style thread ring gauge; engagement does not exceed one pitch)
TS: Pass-Defect (Fails to fully engage with the open end of the new-style thread ring gauge; engagement does not exceed one pitch)
ZT: Stop-Pass (Fully engages with the stop end of a new-style thread ring gauge)
ZZ: Stop-Stop (Cannot fully engage with the stop end of a new-style thread ring gauge; engagement does not exceed one pitch)
ZS: Stop-Loss (Cannot fully engage with the stop end of a new-style thread ring gauge; engagement does not exceed one pitch)
Single-mid-diameter gauge: Refers to a thread with a single mid-diameter dimension that passes inspection.
Single-parameter gauge: Refers to a thread where every parameter is compliant, including major diameter, mean diameter,minor diameter, pitch, half-angle and taper.
Core Advantages & Inspection Capabilities
Extreme Wear Resistance (58-65 HRC)
MISHUTE utilizes premium GCr15 bearing steel as standard, with optional high-performance alloys like SKD11 and CrWMn. Our proprietary heat treatment process achieves a hardness of 58-65 HRC, ensuring the gauge maintains its dimensional stability over thousands of inspection cycles, lowering your total cost of ownership.
Comprehensive Tolerance Coverage for Global Markets
From ultra-tight 4h/4H tolerances for precision instruments to standard 6g/6H and 8g/8H fits, MISHUTE offers the full spectrum of metric classifications. This versatility ensures that your products meet the specific fit requirements of any global region or technical specification.
Advanced Metrology Verification
To ensure every MISHUTE gauge is "Zero-Defect," we employ dual-verification methods. We utilize the traditional "Three-Wire Method" with high-precision micrometers alongside state-of-the-art Integrated Thread Scanners—the preferred method of national metrology institutes—to guarantee the accuracy of every flank angle and pitch.
Bespoke OEM/ODM Customization
MISHUTE understands that B2B clients often have unique requirements. We offer 360° customization services including specialized dimensions, alternative materials, custom branding/marking, and protective packaging tailored to your brand’s distribution needs.
Why Choose Us
As a specialist in industrial metrology, MISHUTE combines 10 years of technical expertise with a commitment to B2B excellence.
Rigorous Quality Control
Technical Consulting
Global Logistics
Applications
FAQ
Calibration frequency depends on the material and usage volume. Our Carbide gauges typically last 5-10 times longer between calibrations compared to steel.
Yes, every gauge includes a factory inspection report. Traceable third-party certification is also available.
We specialize in bespoke orders for special diameters, pitches, and thread profiles like ACME or Buttress.
While Ceramic is brittle compared to steel, our Zirconia (ZrO2) is highly toughened to withstand industrial use while providing unmatched corrosion resistance
